Fourier-transform infrared (FTIR)

Description

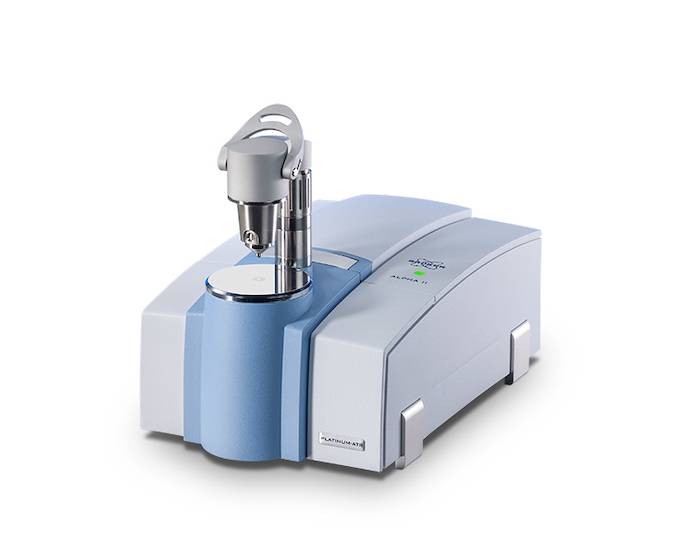

The Fourier-transform infrared (FTIR) spectrometer utilizes broadband IR radiation to probe the vibrational modes of molecule in a liquid, powder, bulk, or thin film sample. The structural features of a molecule and its functional groups produce a characteristic and reproducible absorption in the IR spectrum and can be analyzed to yield both qualitative and quantitative results. This equipment features a robust solid-state IR source, temperature stabilized detector, and permanently aligned interferometer for long term measurement stability. It also includes quick-change sampling modules for added extensibility.

Capabilities

• Broadband IR spectroscopy – Measures molecular vibrational modes for material identification and analysis
• Universal transmission module – Supports solid and liquid samples using KBr pellets or foil holders
• ATR sampling (diamond/germanium crystals) – Enables rapid, minimal-preparation surface and bulk analysis
• Wide spectral range (350–7,500 cm⁻¹) – Covers key functional group regions using KBr beam splitter
• High-sensitivity DLaTGS detector – Provides reliable measurements at room temperature
• High spectral resolution (< 2 cm⁻¹, optional < 0.75 cm⁻¹) – Allows detailed peak separation and analysis
• High wavenumber accuracy (< 0.05 cm⁻¹) – Ensures precise and reproducible spectral data
• Automated validation system – Includes internal OQ/PQ energy testing for performance verification
• Flexible sampling sizes – Accommodates 13 mm pellets/foils and small ATR crystal contact areas (≥ 2–5 mm)
• OPUS software suite – Enables data acquisition, processing, and advanced spectral analysis
